Solid state sensors

Velarray and Velabit are Velodyne’s solid state sensor. The M1600 is a precise near field sensor. Velabit is the next generation of midrange sensors, designed to be small and versatile with a high vertical field of view. Its also designed to be “stackable” so you can mount many to fit the field of view of your liking.

NEW

Velarray M1600

Precise near-field mapping and obstacle avoidance for robotic and autonomous applications

FoV (HxV) : 120°x32°
Range : 0.1-120m
Scanning lines : 64-160
Velarray M1600 Extended range (120m) is now in stock!
Contact Sales

Surround
sensors

The surround sensors all have 360 degree field of view horizontally and from 20-40 degrees vertical field of view. The puck, puck hires and puck lite have a vertical resolution which is the same for the whole field of view, while the remaining Lidars have more lasers focused around the horizontal plane. Other than that there are individual differences in mostly range and how many lasers that are used. With more lasers the Lidar unit produces more measurements per second. All Velodyne Lidars can generate dual return which aids the possibility to achieve penetration of forests and similar objects. The HDL-32E is an older sensor but a true work horse and is a great choice for mapping with its high accuracy.

Puck / VLP-16

Our most popular 16-channel sensor for many applications

Read More

Puck LITE™

Lightweight 16-channel Lidar best for UAVs
Read More

Puck Hi-Res™

16-channel Lidar offering dense point cloud at greater distances
Read More

Ultra Puck™

32-channel sensor with long range
Read More

Alpha Prime™

Most advanced 128-channel sensor with best mapping range
Read More

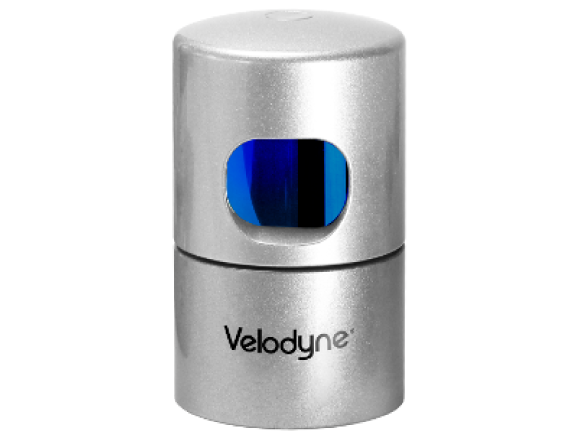

HDL-32E

Precise 32-channel sensor with rotating head
Read More

Compare
the sensors

The table below shows quickly the performance of the different surround sensors and how they compare to each other regarding resolution and range. Contact us and we can help you to select the right Lidar for your application.

Puck / lite / hi-res
Range
100m
Range Accuracy
Up to ±3cm
# Lines
16
Vertical Resolution
2.0°
Vertical FoV
30°/20°
Horizontal FoV
360°
Horizontal Resolution
0.1°-0.4°
Points per Second
(Dual Return Mode)
~600,000
Weight
~830/590g
Ideal Use
Price Performance Options
  • Mapping where price and light weight are essential
  • Robot navigation
Ultra Puck
Range
200m
Range Accuracy
Up to ±3cm
# Lines
32
Vertical Resolution
0.33°(min)
Vertical FoV
40°
Horizontal FoV
360°
Horizontal Resolution
0.1°-0.4°
Points per Second
(Dual Return Mode)
~1,200,000
Weight
925g
Ideal Use
Price Performance Options
  • Medium range mapping
  • High point density
  • ADAS applications
Alpha Prime
Range
300m
Range Accuracy
Up to ±3cm
# Lines
128
Vertical Resolution
0.11°(min)
Vertical FoV
40°
Horizontal FoV
360°
Horizontal Resolution
0.1°-0.4°
Points per Second
(Dual Return Mode)
~4,800,000
Weight
~3.5kg
Ideal Use
Price Performance Options
  • Long range mapping
  • Very high point density
HDL32
Range
100m
Range Accuracy
Up to ±2cm
# Lines
32
Vertical Resolution
1.33°
Vertical FoV
41.33°
Horizontal FoV
360°
Horizontal Resolution
0.1°-0.4°
Points per Second
(Dual Return Mode)
~1,390,000
Weight
1.0kg
Ideal Use
Price Performance Options
  • Normal range mapping
  • Medium laser point density
  • The best accuracy of any Velodyne Lidar
  • Classic work horse
  • The whole head rotates which can be useful to get rid of water

When purchasing Lidar, it is accompanied by a declaration of conformity with the list of fulfilled standards for the specific sensor for your convenience.

Visimind system:
Ultra Puck TM

Colored with three 15 megapixel cameras, mounted on a moving car

Visimind system:
Ultra Puck TM
